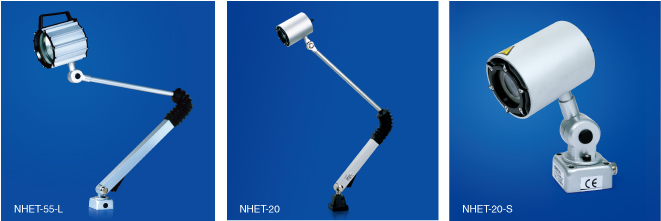

HALOGEN SPOT LIGHTS
NHET SERIES
Waterproof and dustproof. Variety of arm length, power source and bulb wattage.
  • CE certified,REACH and RoHS compliant
  • Ingress protection rating:IP67(lamp head only)



Specifications

Example
Type Arm length Mount pitch Power source Wattage
NHET-55-M 220×280mm 45×45mm
4-Φ6.2		 AC100V 12V 55W
NHET-55-L 400×400mm 45×45mm
4-Φ6.2		 AC100V 12V 55W
NHET-20 280×415mm 45×45mm
4-Φ6.2		 AC 100/24V 24V 20W
NHET-20-S ............ 45×45mm
4-Φ6.2		 24V 24V 20W

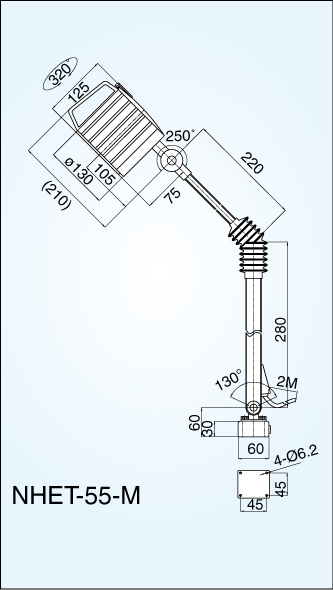

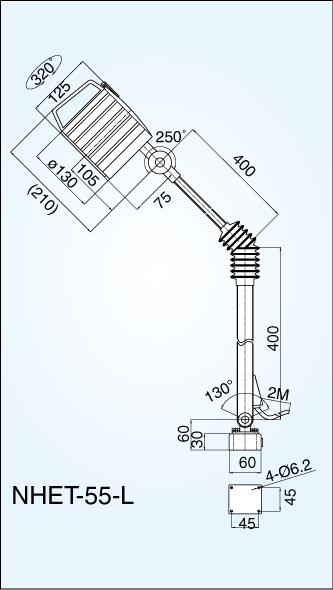

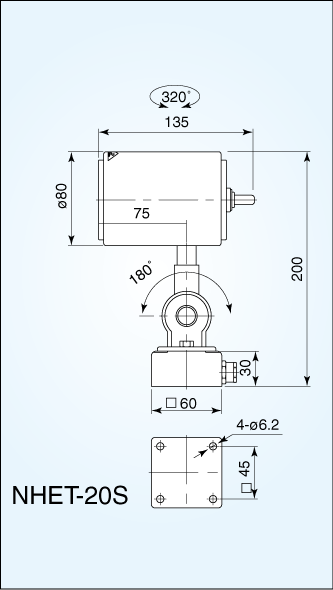

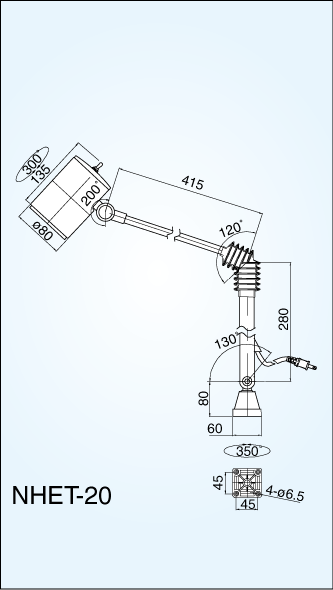

Dimensions
